3 plate spillback atomizer 32 without needle
Dimension drawing showing the principal and connection dimensions for type 32 for spill-back atomizers. Filed under Type 32. Document number 32-5G81-6G-E. PDF document in English.
文档分类
Disc atomizers
Disc and plate atomizers type 24, 32 and 40, including the corresponding plate and swirler components.
结果
Disc atomizer 32 Simplex
Technical datasheet for type 32 for simplex atomizers listing the available sizes, materials and connection dimensions. Filed under Type 32. Document number 32-W101-6D-E. PDF document in English.
Disc atomizer 32 without needle
Dimension drawing showing the principal and connection dimensions for type 32 for disc atomizers. Filed under Type 32. Document number 32-W101-6C-E. PDF document in English.
Orifice 24-D / E / L / M-… Swirler 24-P-‘nr’ Supply pressure 25 Bar Viscosity 5 cSt OUTPUT CHARACTERISTIC
Output characteristic for type 24 for disc atomizers used to size the duty point for the application. Filed under Output characteristics. Document number 24-5FDB-DR-E. PDF document in English.
Orifice 24-D / E / L / M-… Swirler 24-P-‘nr’ Supply pressure 30 Bar Viscosity 5 cSt OUTPUT CHARACTERISTIC
Output characteristic for type 24 for disc atomizers used to size the duty point for the application. Filed under Output characteristics. Document number 24-5FDB-DT-E. PDF document in English.

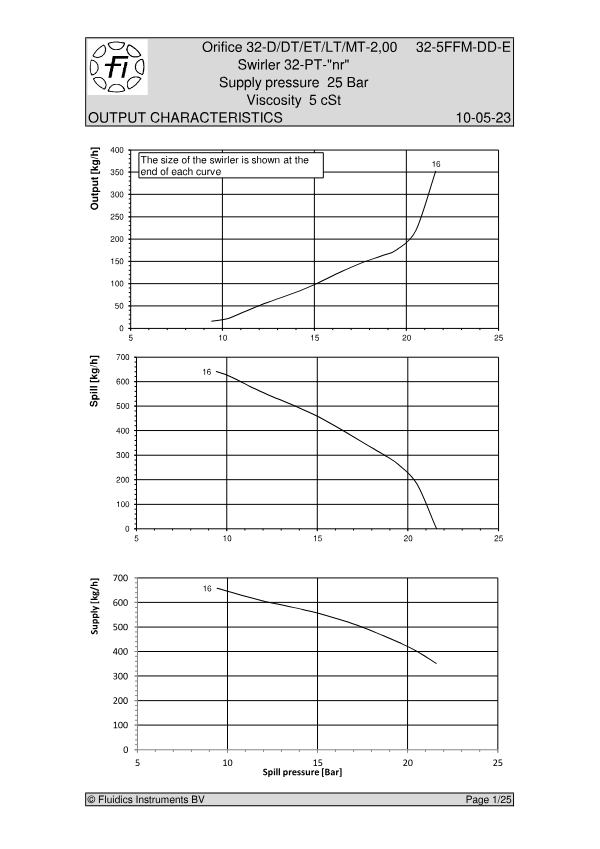

Orifice 32-D/DT/ET/LT/MT-… Swirler 32-PT-“
Dimension drawing showing the principal and connection dimensions for type 32 for disc atomizers. Filed under Output characteristics. Document number 32-5FFM-DD-E. PDF document in English.

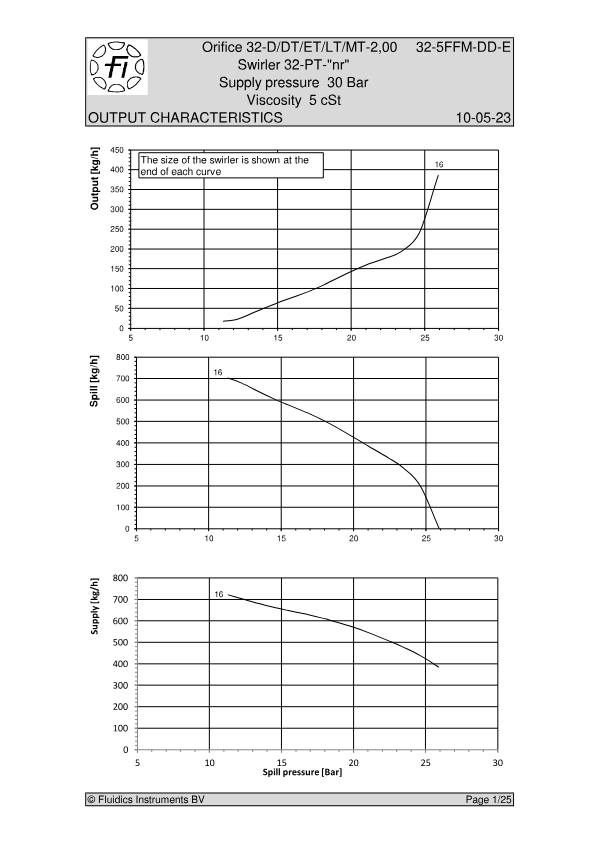

Orifice 32-D/DT/ET/LT/MT-… Swirler 32-PT-“
Output characteristic for type 32 for disc atomizers used to size the duty point for the application. Filed under Output characteristics. Document number 32-5FFM-DG-E. PDF document in English.

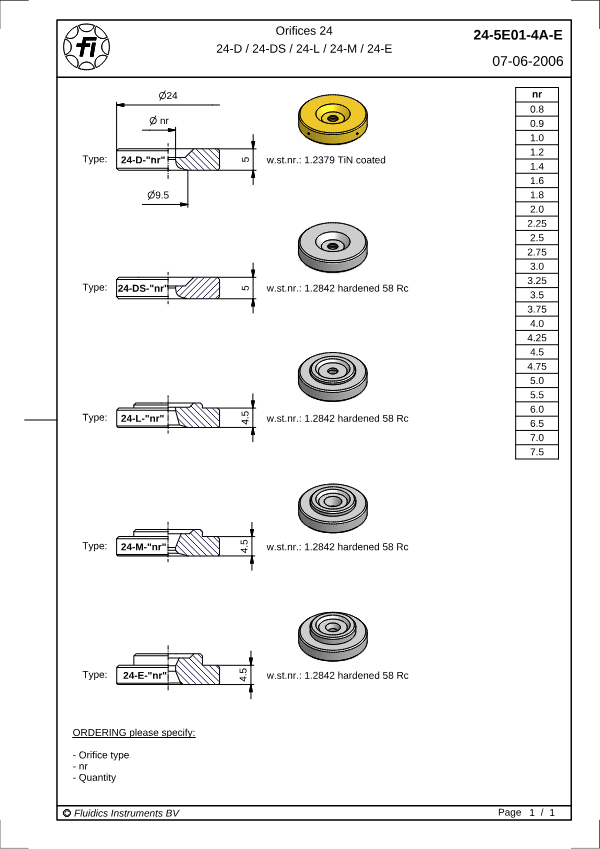

Orifices 24 24-D / 24-DS / 24-L / 24-M / 24-E
Dimension drawing showing the principal and connection dimensions for type 24 for disc atomizers. Filed under Type 24. Document number 24-5E01-4A-E. PDF document in English.

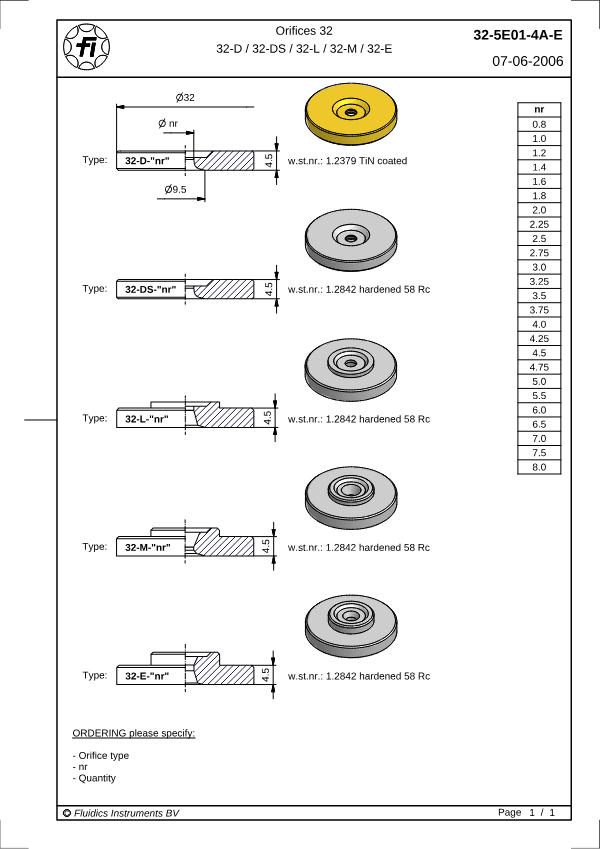

Orifices 32 32-D / 32-DS / 32-L / 32-M / 32-E
Dimension drawing showing the principal and connection dimensions for type 32 for disc atomizers. Filed under Type 32. Document number 32-5E01-4A-E. PDF document in English.

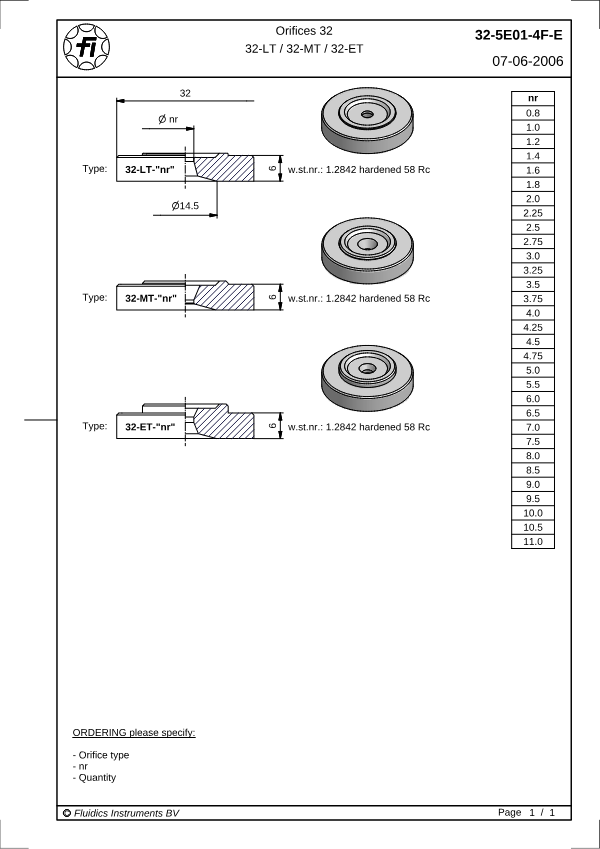

Orifices 32 32-LT / 32-MT / 32-ET
Dimension drawing showing the principal and connection dimensions for type 32 for disc atomizers. Filed under Type 32. Document number 32-5E01-4F-E. PDF document in English.

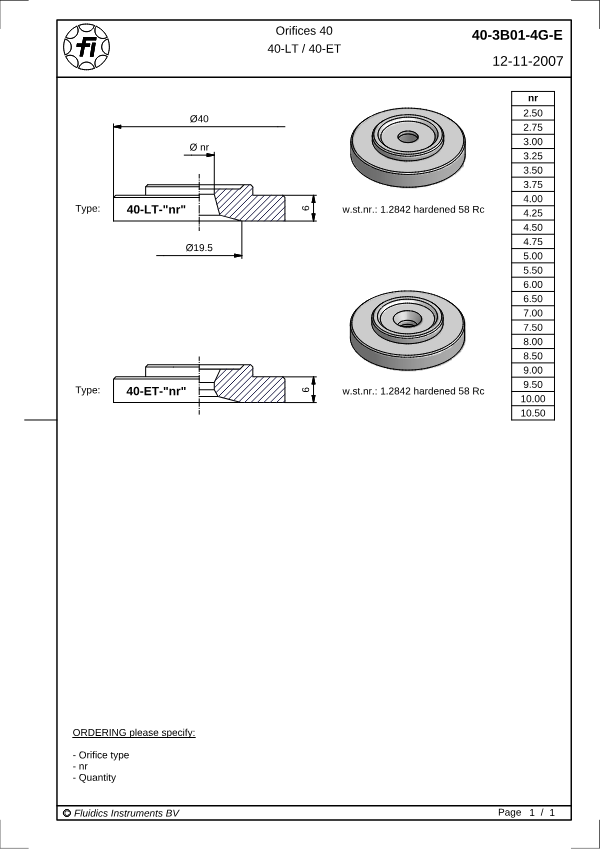

Orifices 40 40-LT / 40-ET
Dimension drawing showing the principal and connection dimensions for type 40 for disc atomizers. Filed under Type 40. Document number 40-3B01-4G-E. PDF document in English.

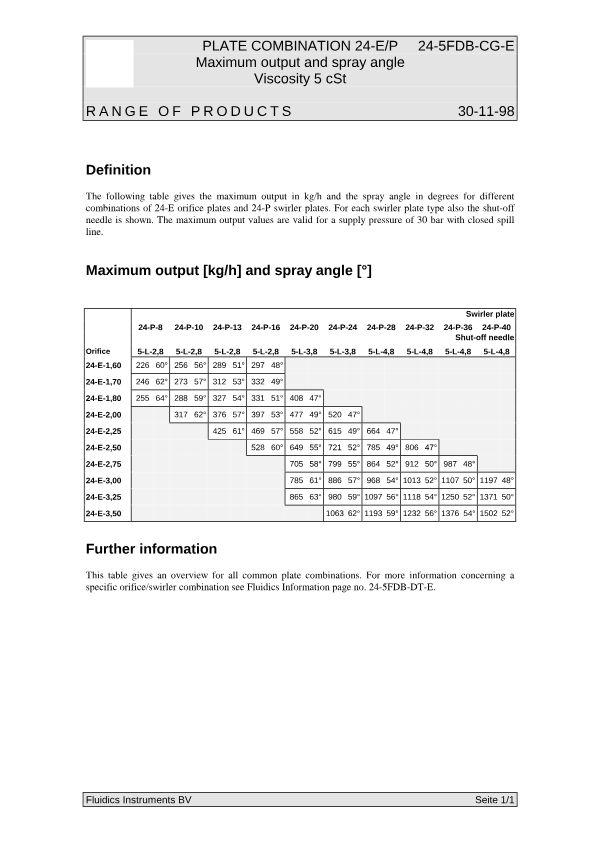

PLATE COMBINATION 24-E/P Maximum output and spray angle Viscosity 5 cSt RANGE OF PRODUCTS
Output characteristic for type 24 for disc atomizers used to size the duty point for the application. Filed under Type 24. Document number 24-5FDB-CG-E. PDF document in English.

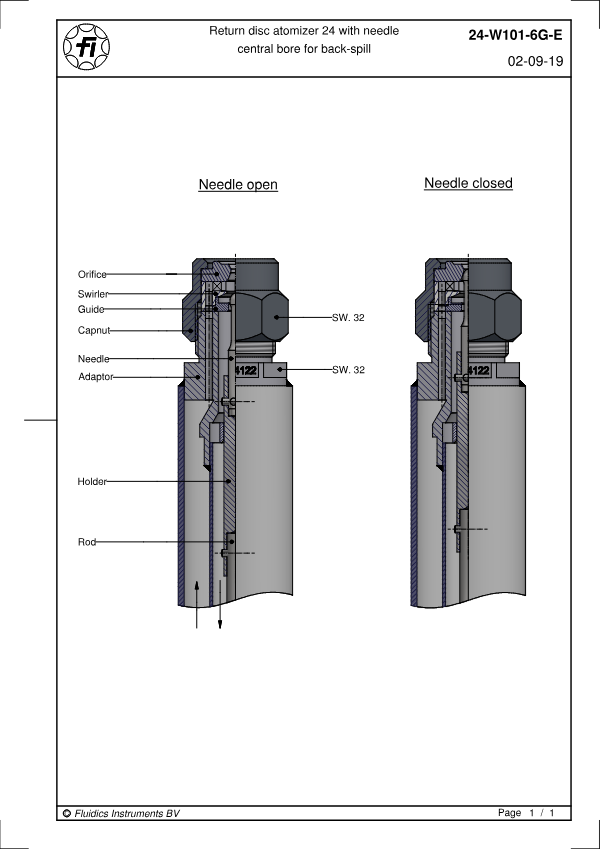

Return disc atomizer 24 with needle Central bore for return
Dimension drawing showing the principal and connection dimensions for type 24 for disc atomizers. Filed under Type 24. Document number 24-W101-6G-E. PDF document in English.
Return disc atomizer 24 without needle
Dimension drawing showing the principal and connection dimensions for type 24 for disc atomizers. Filed under Type 24. Document number 24-W101-6C-E. PDF document in English.

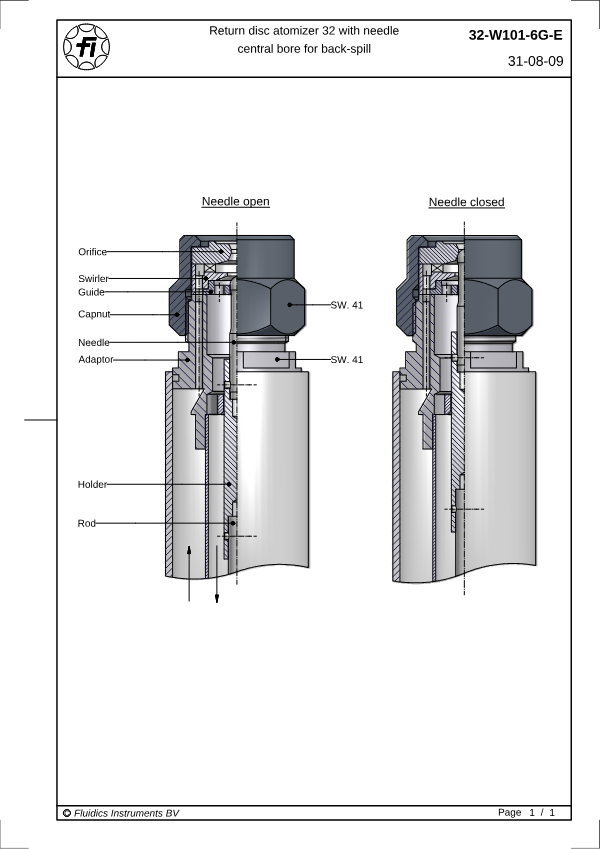

Return disc atomizer 32 with needle Central bore for back-spill
Dimension drawing showing the principal and connection dimensions for type 32 for disc atomizers. Filed under Type 32. Document number 32-W101-6G-E. PDF document in English.

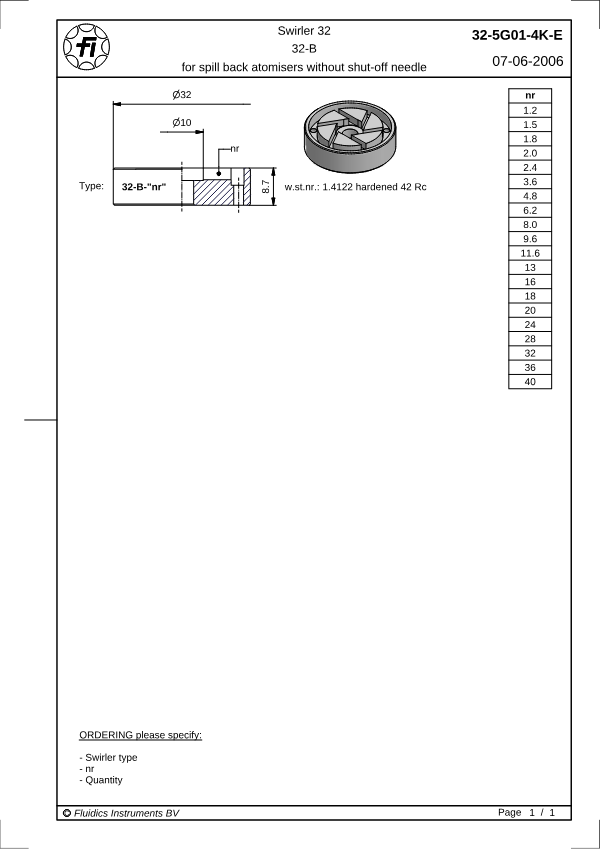

Swirler 32 32-B for spill back atomizers without shut-off needle
Dimension drawing showing the principal and connection dimensions for type 32 for spill-back atomizers. Filed under Type 32. Document number 32-5G01-4K-E. PDF document in English.

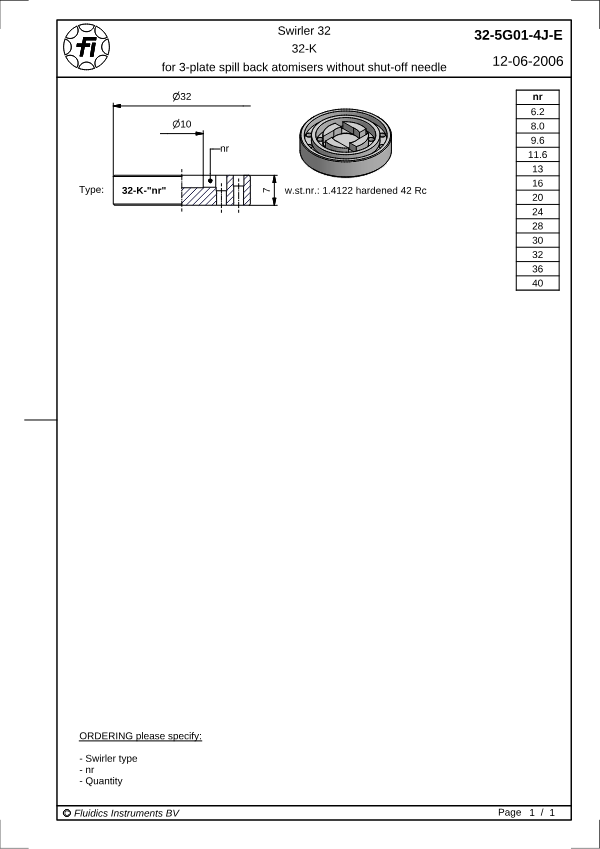

Swirler 32 32-K for 3-plate spill back atomizers without shut-off needle
Dimension drawing showing the principal and connection dimensions for type 32 for spill-back atomizers. Filed under Type 32. Document number 32-5G01-4J-E. PDF document in English.

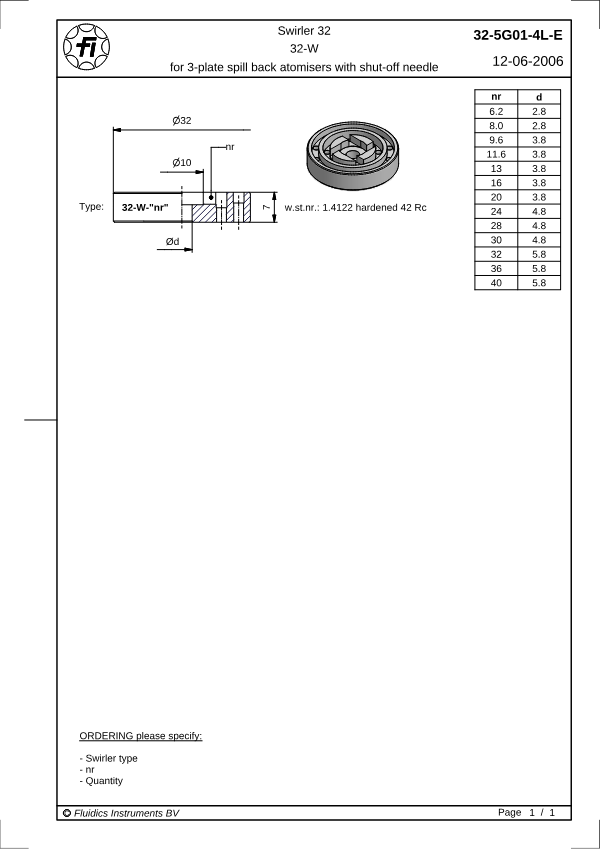

Swirler 32 32-W for 3-plate spill back atomizers with shut-off needle
Dimension drawing showing the principal and connection dimensions for type 32 for spill-back atomizers. Filed under Type 32. Document number 32-5G01-4L-E. PDF document in English.
Swirler 40 40-AT for simplex atomizers
Dimension drawing showing the principal and connection dimensions for type 40 for simplex atomizers. Filed under Type 40. Document number 40-5101-4I-E. PDF document in English.

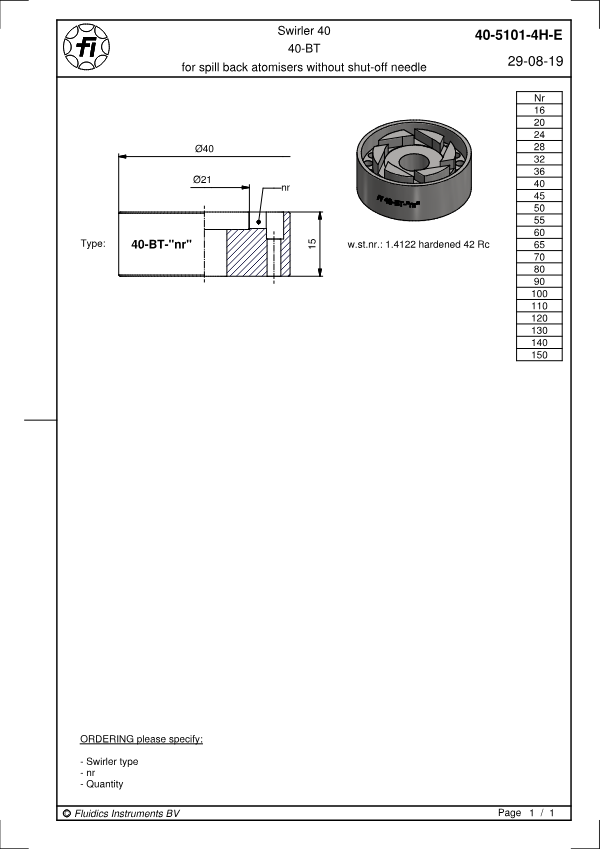

Swirler 40 40-BT for spill back atomizers without shut-off needle
Dimension drawing showing the principal and connection dimensions for type 40 for spill-back atomizers. Filed under Type 40. Document number 40-5101-4H-E. PDF document in English.
